Product：5630 Series

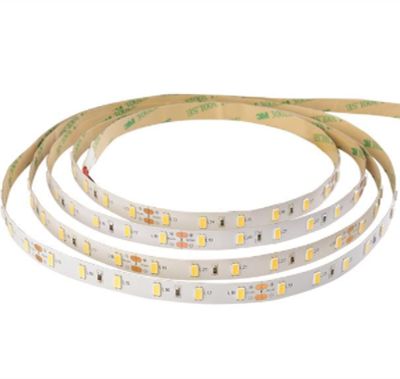

Product Name: led flexible strips
Part No：SMD5630
Applicable place：Cover lighting, architectural lights for canopy, corridor, windoe, archway
Scope of application：interior and exterior LED lighting
Product Features：
1.Adopts high brightness SMD5630 as light source
2.Double layer copper FPC.
3.Pure white ,warm white ,red ,green ,blue and yellow are available.
4. Input 12v/24v DC the length can be customized.
5. 3-led(12v dc) and 6-led(24v dc) as a unit and can be cut by different length.
6.Stick 3M adhesive tape on the back
Installation：
Taking off the protection sheet of 3M adhesive tape on the back of the LED strip when installation, then stick it to the installed location.
Warranty：
2years
Electric Parameters：
|
Part No. |
LED source |
Leds/piece |
Luminous efficacy(lm/W) |
IP |
Voltage(V DC) |
Size(mm) |
Power(W/piece) |
|
BLC-LS-5630W180 |
5630 |
150 |
50-55 |
IP20/54/65 |
12/24 |
5000*10*1.4 |
54 |
|
BLC-LS-5630W300 |
5630 |
300 |
12/24 |
90 |
|||
|
BLC-LS-5050W600 |
5630 |
600 |
24 |
180 |
① Testing environment temperature is 25±2℃；
② The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.
③ The modules are high-power products, can not use double-side power supply method.

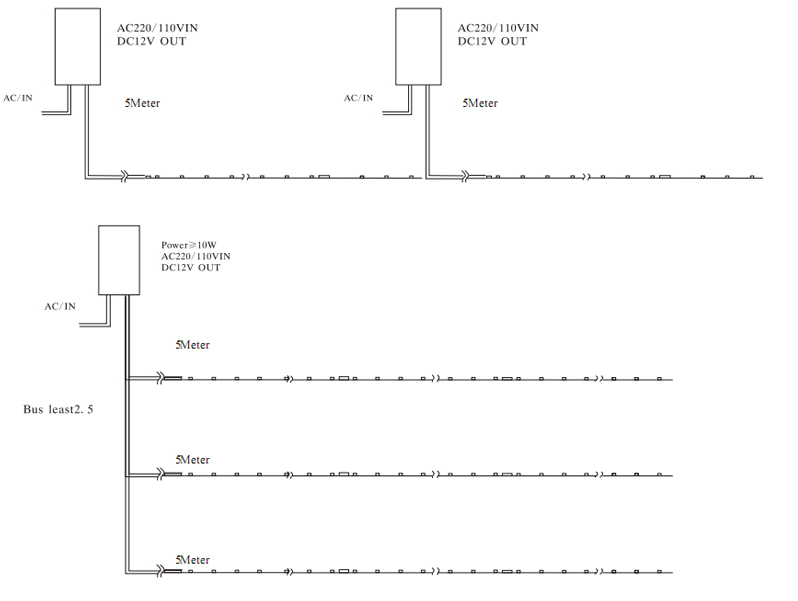

Connection diagram
