Product Specification
Product：2835 Series

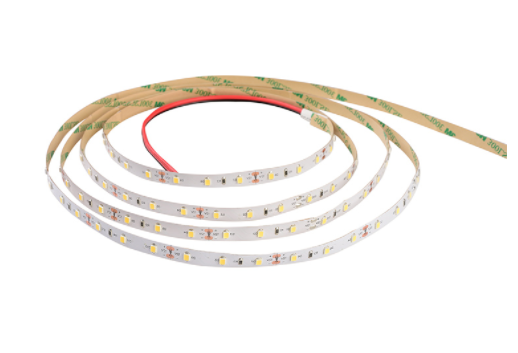

Product Name: led flexible strips
Part No：SMD2835
Applicable place：Cover lighting, architectural lights for canopy, corridor, windoe, archway
Scope of application：interior and exterior LED lighting
Product Features：
1.Adopts high brightness SMD2835 as light source
2.Double layer copper FPC.
3.Pure white ,warm white ,red ,green ,blue and yellow are available.
4. Input 12v/24v DC the length can be customized.
5. 3-led(12v dc) and 6-led(24v dc) as a unit and can be cut by different length.
6.Stick 3M adhesive tape on the back
Installation：
Taking off the protection sheet of 3M adhesive tape on the back of the LED strip when installation, then stick it to the installed location.
Warranty: 2 years.
|
Part No. |
LED source |
Leds/piece |
Luminous efficacy(lm/W) |
IP |
Voltage(V DC) |
Size(mm) |
Power(W/piece) |
|
BLC-LS-2835W150 |
2835 |
150 |
20-22 |
IP20/54/65/66 |
12 |
5000*8*2.1 |
36 |
|
BLC-LS-2835W300 |
2835 |
300 |
12/24 |
72 |
|||
|
BLC-LS-2835W600 |
2835 |
600 |
24 |
144 |
① Testing environment temperature is 25±2℃；
② The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.
③ The modules are high-power products, can not use double-side power supply method.

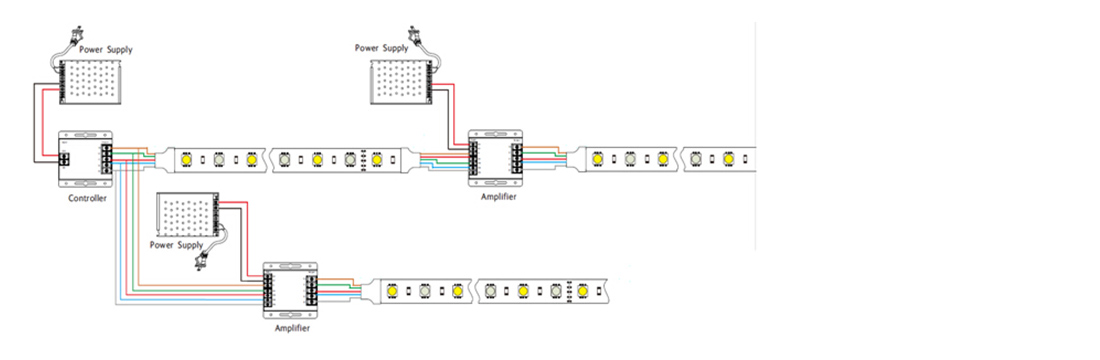

Connection diagram
Notice：
Pls kindly connect to the LED driver in accordance with the connection diagram.
Installation surface must be smooth and clean, otherwise the product will fall off.
Avoiding to bend at the location of LED and resistor when installation, so as to damage the product and influence the lifespan.
Pls note to be anti-static when installation and usage, and sharp object to touch the product is not allowed.
Don’t touch the acid and alkali corrosion chemicals when installation and usage.
Minimum bend radius of the product can not be less than 30MM.
